Top 13 Methods of Gene Transfer (With Diagram)

The following points highlight the top thirteen methods of gene transfer. Some of the methods are: 1. Calcium Chloride (CaCl₂) Mediated DNA Transfer 2. Rubidium Chloride Mediated DNA Transfer 3. Electroporation 4. Liposome Encapsulation (Lipofection) 5. Microinjection

Gene Transfer:

Method # 1. Calcium Chloride (CaCl₂) Mediated DNA Transfer:

This is used for the transformation of prokary­otic host cells.

Principle:

In the process of transformation all bacterial cells cannot uptake the exogenous DNA mole­cule. Those who are capable to take are called competent cells. So our aim in this step is to make bacterial cells more competent so that the possibility of transferring of the recombi­nant DNA into the host cell increases to a higher fold. CaCl₂ makes the cell wall of the bacteria more permeable to the exogenous DNA and thus increases the competence of the host cell.

Procedure:

Growing E. Coli cells are isolated and sus­pended in 50 mM CaCl₂ at a concentration of 108-1010 cells/ml. The cells may be incubated for 12- 24 hr. to increase the frequency of trans­formation. The recombinant DNA is then added.

Efficient transformation takes only a few minutes and the cells are plated on a suit­able medium for the selection of transformed clones. The frequency of transformed cells is 106-107 per mg of plasmid DNA; this is about one transformation per 10,000 plasmid mol­ecules.

The transformed cells are suitably di­luted and spread thinly on a suitable medium so that each cell is well separated and produces a separate colony. Generally, the medium is so designed that it permits only the trans­formed cells to divide and produce colonies. This frequency can be further improved by using special E. Coli strains, e.g., SK1590, SK1592, X1766, etc.

Gene Transfer:

Method # 2. Rubidium Chloride Mediated DNA Transfer:

The rubidium chloride method is a variant of the calcium chloride method that offers some­what higher competency. The process followed is same as before but just the CaCl₂ is replaced with RbCl₂. This is also used in the transfor­mation of the prokaryotic host cell.

Gene Transfer:

Method # 3. Electroporation:

Electroporation or electro-permeabilization is the process of applying electrical field to a living cell for a brief duration of time in order to create microscopic pores in the plasma mem­brane called electro-pores. This technique is used for transferring the recombinant DNA molecule into wide range of hosts starting from bacteria to plant (plant protoplasts) and ani­mal cells.

Principle:

The phospholipid molecules of the plasma membrane are not static. When we apply elec­tric field to them their kinetic energy increases resulting in the increase in the membrane per­meability at certain points. This is exactly where we see the formation of electro-pores. The recombinant DNA can pass through these transient pores before they close.

Procedure:

In this process cells are mixed with the recom­binant DNA and the mixture is placed in a small chamber with electrodes connected to a specialized power supply. Then a brief electric impulse is discharged across the elec­trodes, which makes pores (holes) in the plasma membrane.

These pores remain for some time and are again resealed themselves. Recombinant DNA enters the cell which are removed and plated in fresh selective medium. The process of selection is then applied to iso­late cells carrying recombinant DNA.

Gene Transfer:

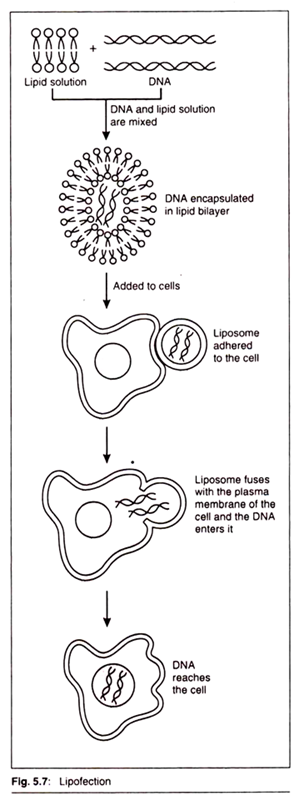

Method # 4. Liposome Encapsulation (Lipofection):

This technique is found very successful in the transfection of plant protoplasts and animal host cells.

Principle:

Liposomes are microscopic vesicles developed in a laboratory environment. Each liposome is a spherical ball like structure made up of phospholipid bilayers with a hollow central space, allowing liposomes to interact directly with cells.

A liposome can fuse with the cell membrane of the taken host cell and can de­liver its content to it. The recombinant DNA enclosed in the liposome vesicles penetrates into the protoplast of the host cell.

Procedure:

In this technique the recombinant DNA, which is negatively charged at a near neutral pH because of its phosphodiester backbone, is mixed with the lipid molecules with positively charged (cationic) head groups. The lipid mol­ecules form a bilayer around the recombinant DNA molecules.

This results in the formation of liposomes which are further mixed with the host cells. Most eukaryotic cells are negatively charged at their surface, so the positively charged liposomes interact with the cells. Cells take up the lipid-recombinant DNA complexes, and some of the transfected DNA enters the nucleus.

Gene Transfer:

Method # 5. Microinjection:

This is the direct introduction of the recombi­nant DNA into the host cell. This technique has been used successfully with both plant and animal cells. In this procedure the cell is held on a glass capillary by gentle suction.

The mi­croinjection needle is made by drawing out a heated glass capillary to a fine point. Using a micromanipulator (a mechanical device for fine control of the capillary) the needle has been inserted into the nucleus of the host cell.

One obvious disadvantage is that this technique is labour-intensive and not suitable for primary cloning procedures where large numbers of recombinants are required. However, in cer­tain specialised cases it is an excellent method for targeting DNA delivery once a suitable re­combinant has been identified and developed to the point where microinjection is feasible.

Gene Transfer:

Method # 6. Biolistic Particle Delivery System:

A gene gun or a biolistic particle delivery sys­tem is a device which can directly bombard small particles coated with the recombinant DNA on the nucleus of the target cell. This technique is often simply referred to as bio-ballistics or biolistics and has been success­fully used in the transfection of both plant and animal cells.

In this technique the recombinant DNA is coated with microscopic tungsten par­ticles known as micro-projectiles, which are then accelerated on a macro-projectile by firing a gunpowder charge or by using compressed gas to drive the macro-projectile.

At one end of the ‘gun’ there is a small aperture that stops the macro-projectile but allows the micro-projectiles to pass through. When directed at cells, these micro-projectiles carry the DNA into the cell and, in some cases, stable transformation will occur.

Gene Transfer:

Method # 7. Calcium Phosphate Co-Precipitation:

This technique is used for the transfection of plant and mostly animal cells. The recombi­nant DNA is mixed with calcium chloride in a phosphate buffer at neutral pH. This results in the formation of recombinant DNA-calcium phosphate complex which appears as a thin precipitate. This precipitate is then added to the host cell.

The precipitate is taken up by the cell by the process of phagocytosis. The re­combinant DNA enters the nucleus and inte­grates into the host’s genome. The transfec­tion efficiency can be increased by exposing the host cell to 10-20% glycerol or Dimethyl sulfoxide (DMSO).

Gene Transfer:

Method # 8. Sonoporation:

Sonoporation, or cellular sonication, is the use of sound (typically ultrasonic frequencies) for the transfer of recombinant DNA into the target host cell. This process has been success­fully used in a wide range of host cells start­ing from bacteria to plant and animal cells.

This employs the acoustic waves to increase the permeability of the plasma membrane. Taking the advantage of this situation the re­combinant DNA enters the host cell.

Gene Transfer:

Method # 9. Optical Transfection:

Optical Transfection is the process of introduc­ing nucleic acids into cells using light. This has been successful in transfecting animal cells. In this technique the plasma membrane of the host cell is exposed to the highly focused la­ser beam for a small amount of time (typically tens of milliseconds to seconds), generating a transient pore on the membrane called photo-pore.

Through the photo-pore the recombinant DNA can enter the host cell.

Gene Transfer:

Method # 10. Impalefection:

Impalefection is a method of gene delivery using Nano materials, such as carbon Nano fibres, carbon nanotubes, nanowires, etc. This technique is used for the transfec­tion of plant and animal cells. In this tech­nique needle-like nanostructures are synthe­sized perpendicularly to the surface of a sub­strate.

Recombinant DNA is attached to the nanostructure surface. A chip with arrays of these needles is then pressed against cells or tissue.

Gene Transfer:

Method # 11. Magnetofection:

Magnetofection, or Magnet assisted trans­fection is a method, which uses magnetic force to deliver recombinant DNA into target host cells. Nucleic acids are first associated with magnetic nanoparticles. Then, application of magnetic force drives the nucleic acid particle complexes towards and into the target host cells, where the cargo is released. This has been successfully used to transfect the plant and animal cells.

Gene Transfer:

Method # 12. Protoplast Fusion:

This technique is used for introducing gene of interest into plant and animal cells. In this technique first we transfer the recombinant DNA into a bacterial cell then dissolve its cell wall by treating it with lysozyme. After this we fuse the host protoplast with the bacterial cell (lacking cell wall) by the help of polyethy­lene glycol (PEG). The transfected cells are then selected by suitable methods.

Gene Transfer:

Method # 13. Virus Mediated Gene Transfer:

In other way the gene can be packed into a virus and allow it to infect the host cell with­out harming it in any way. This method can be used both for the transformation of prokary­otic host cell as well as transfection of eukary­otic host cells. In the case of bacterial host cells the recombinant DNA can be packed into the empty head of a specially designed bacterioph­age (e.g., lambda phage) and allow the virion to infect the host cell.

Similarly, while transfecting the plant host cells we can follow the similar strategy by using plant viruses like Caulimo virus and Gemini virus. In the case of animals, retrovirus infection of embryos has been used for the production of transgenic mice.

This virus has been found to be an effi­cient vector system for animals. The virus car­rying the gene of interest transfers it into the genome of embryonic cells leading to its inte­gration and production of transgenic animals.
